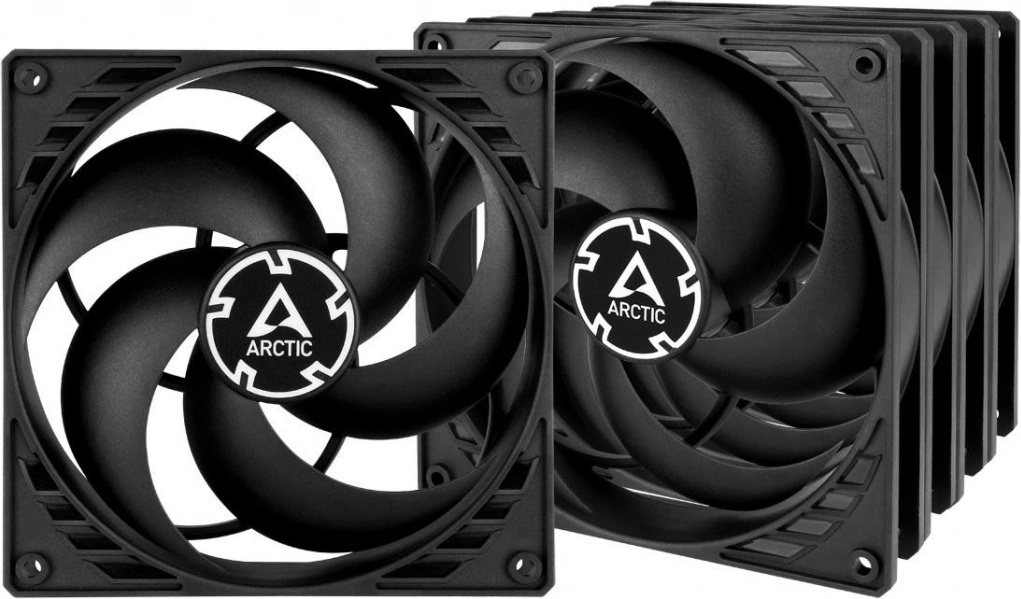

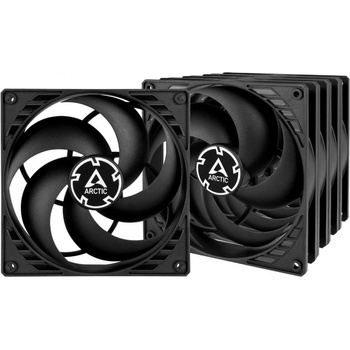

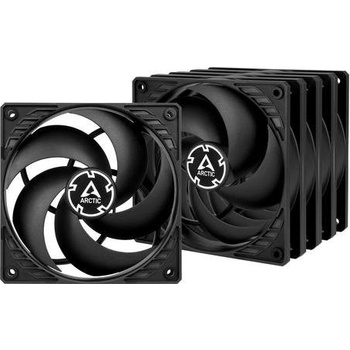

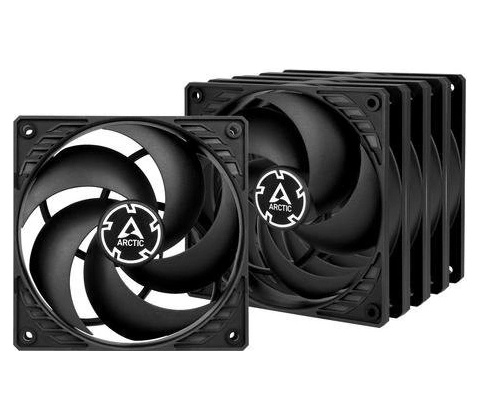

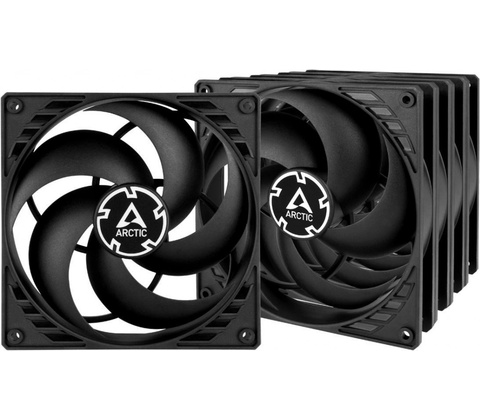

ARCTIC P14 Value pack ACFAN00136A

Nová série ventilátorů P optimalizovaná na statický tlak. Toto je sada 5 ventilátorů ARCTIC P14 o rozměru 140x140x25mm s 1700 RPM a vzduchovým transferem 72.8 CFM (123.76 m3/h) a hlučností 0,3 Sone.

Optimised for Static Pressure

During the development of the new P14, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 is particularly suitable for use on heatsinks and radiators.

High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Performance

• Fan: 140 mm, 1 700 RPM (@ 12 V DC)
• Air Flow: 72.8 CFM (123.76 m3/h)
• Noise Level: 0.3 Sone (@ 1 700 RPM)
• Static Pressure: 2.4 mm H2O

Electrical Characteristics

• Typical Voltage: + 12 V DC
• Start-up Voltage: 2.1 V
• Cable Length: 400 mm

Voltage Current 12 V DC (Norminal) 0.15 A 7 V DC 0.08 A 5V DC 0.05 A

Connection Motherboard: + 12 V DC 3-pin Connector
